1318772-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1318772-2
Datasheet:
Description:

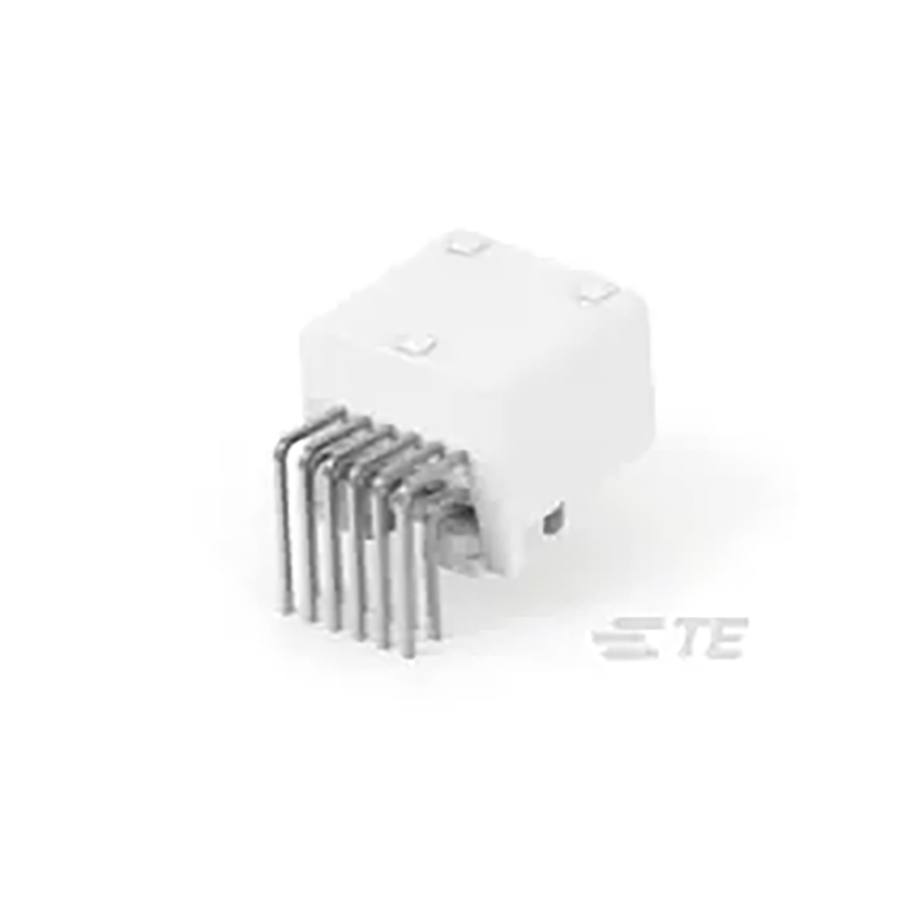

Headers and Wire Housings Through Hole Header Number of Positions:12 Pitch:2.2098 mm
| Parameter | Value |
|---|---|
| Length | 24.4602 mm |
| Width | 18.6 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 15.5 mm |
| Packaging | Tube |
| Depth | 24.47 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.2098 mm |
| Max Voltage Rating (DC) | 12 V |
| Flammability Rating | UL94 HB |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 12 |
| ELV | Compliant |
| Tab Width | 635 µm |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 5.6 mm |
| Housing Material | Polybutylene |
| Circuit Application | Signal |
| Housing Color | Natural |
| Contact Mating Length | 5.5118 mm |
| PCB Thickness | 1.6 mm |
| Contact Gender | Female |
| Mating Post Length | 5.5 mm |
| Tab Thickness | 640 µm |
| Number of Signal Positions | 12 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Termination Post Length | 4 mm |
Stock: 318
Distributors
pcbx
pcbxUnit Price$0.97354
Ext.Price$0.97354
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.97354 | $0.97354 |
| 10 | $0.81658 | $8.16580 |
| 25 | $0.76720 | $19.18000 |
| 50 | $0.72081 | $36.04050 |
| 100 | $0.67722 | $67.72200 |
| 300 | $0.63627 | $190.88100 |
| 500 | $0.59781 | $298.90500 |
